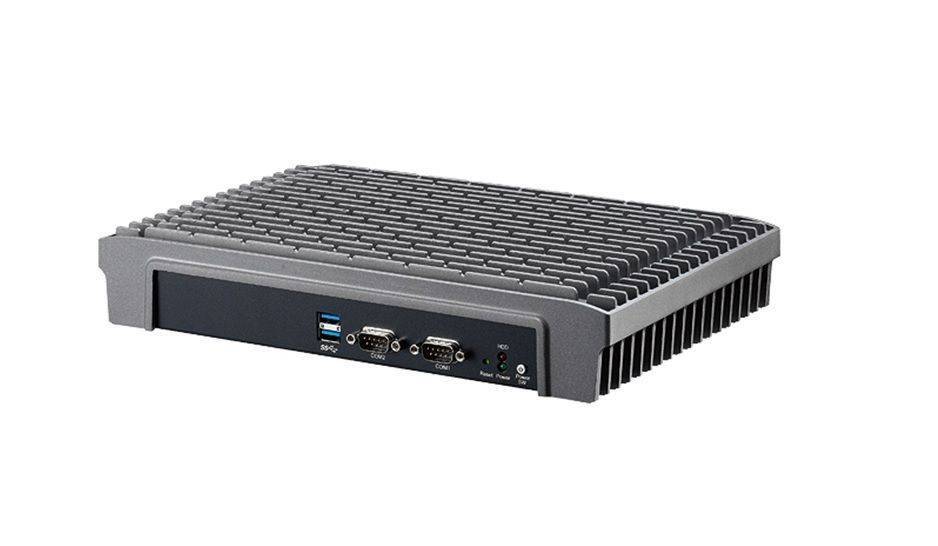

Fanless Embedded Computer Powered by 4th Generation Intel® Core™ Processor, Support Dual Full HD Video Playback and up to 4K Resolutions

Inquiry

DS-A9 is a powerful digital signage player which is built around the superb technology of 4th generation Intel® Core™ processor family series and Q87 integrated graphics controller. The digital signage player can offer impressive system performance and full HD videos. With support for smooth 1080P video playback on three independent displays, the 1080P signage player can fully satisfy customer’s expectation and therefore be used in applications such as advertising, hospitality, brand promotion and digital menu board.

Features:

  • 4th Generation Intel® Core™ processor
  • Intel® integrated HD 4600 graphic engine
  • Compact and Slim Design
  • 3 Independent display
  • USB 3.0, Dual GbE LAN support
  • WLAN/ TV tuner support
  • DirectX 11.1 support
  • Enhanced 4K x 2K output support
System Specification
CPU Support 4th generation Intel® Core™ LGA socket type processor
Chipset Intel® Q87 Intel® integrated HD4600 graphic engine
Main Memory 2 x 204-pin SO-DIMM sockets , Supports DDR3 1600/1333MHz non-ECC, un-buffered memory up to 16GB (Single socket max. 8GB)
I/O Interface-Front 1 x power status LED 1 x HDD status LED 1 x power switch 1 x reset switch 2 x USB3.0 2 x DB9 for RS-232
I/O Interface-Rear +12V DC-in 3 x HDMI 2 x USB3.0 2 x RJ45 with LED for 10/100/1000Mbs Ethernet 1 x SPDIF 1 x Line-in/ 1x Line-out 3 x antenna hole for Wi-Fi and TV tuner
Storage 1 x SATA 2.5" HDD 1 x SATA DOM
Expansion 1 x Mini-PCIe for optional WLAN module 1 x Mini-PCIe for optional TV tuner module
Data Protection 1 x Wafer on board for TPM module (ver. 1.2), support Intel Trusted Execution Technology
Construction Top cover made by aluminum for main heat exchange Chassis made by steel in black
Dimensions 294 mm (W) x 198 mm (D) x 52 mm(H) (11.6" x 7.8" x 2.0") w/o mounting bracket
Power Supply 1 x External 80W AC/ DC adapter
Input: 100~240VAC
Output: +12VDC
Environment Operating temperature: 0°C to 40°C Storage temperature: -20°C to 80°C Humidity: 10 to 90% (non-condensing)
Certification CE approval FCC Class A
Operating System Windows7 / Windows 8
