Rugged Panel PC



15.6' Facnless Touch Panel PC With Intel D2550 CPU


  1. 15.6" LED LCD
  2. Intel Cedarview D2550 Dual Core 1.86G CPU
  3. Resolution: 1024 x 600
  4. True flat resistive touch / True flat projected capacitive touch
  5. Fanless


Mainboard C45 C86
Processor Intel Cedarview D2550 Dual Core 1.86G, L2 1M, 10W Intel Sandy Bridge CPU, LGA 1155-pin, 32nm
i5-2390T 2.7G, LLC 6M, 35W
i3-2120T 2.6G, LLC 3M, 35W
Pentium G630T 2.3G, LLC 3M, 35W
Chipset CPU integrated graphic + NM10, 2W Intel Q67 PCH, 6.1W (AMT/RAID enabled)
Intel H61 PCH, 6.1W (AMT/RAID disabled)
System Memory 2 x DDR3 SO- DIMM socket up to 4GB, FSB 1066 MHz 1 x DDR3 Long-DIMM up to 8GB, 1066/1333MHz
Graphic Memory Intel GMA 3650 (Gfx frequency up to 640MHz), DX9 Intel HD Graphics 2000/3000, integrated in CPU, frequency 850MHz (dynamic up to 1.1GHz)
LCD Touch Panel
LCD Size PAN-A52 : 15.6" LED LCD
Brightness PAN-A52 : 220 cd/m2
Resolution PAN-A52 : 1366 x 768
Touch Screen PAN-A52 : True flat resistive touch / True flat projected capacitive touch
Storage Device
Hard Drive one 2.5" slim SATA HDD bay
Flash Memory SATA pSSD (Option)
miniPCI-E Slot 1
External I/O Ports
USB 2.0 4 x USB Type A
Serial Port 4 x RJ45 COM ports (COM1/2 standard RS232; COM3/4 powered RS232; COM3 default 5V / COM4 default 12V by BIOS setting)
Parallel Port N/A 1 x D-sub 25F
GigaLAN (10/100/1000) 1 (RJ45)
2nd GigaLAN (10/100/1000) 1 (RJ45)
2nd VGA 1 (DB15 Female)
Cash Drawer N/A 1 (RJ11)
DC Jack                          (Power input voltage) 1 (8V ~ 36V) 1 (19V)
Audio Jack 1 x Mic-in, 1 x Line-out
E-SATA 1 (Option)
Thermal solution
Thermal solution Fanless 1 x Fan
Internal Speaker 2 x 2W speaker
Power Adapter PAN-A52 : 65W/19V 120W/19V
Power Button 1
Peripherial (option)
Web cam (Build in) 2M web cam
WiFi 802.11 b/g/n WLAN card
MSR-right side 3 track (USB)
Device Box Smart IC card Reader / Scanner / Function Keypad / Line Out / Mic In
EMC & Safety FCC Class A / CE Mark / LVD / EN 60601-1-2
Operating Temperature 0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Humidity 20% ~ 85% RH non-condensing
Dust & Water Proof IP65 (front)
Physical Characteristics
Dimension (W x D x H) PAN-A52 : 396 x 48 x 245mm (15.6" x 1.9" x 9.6")
Weight PAN-A52 : 4.5kg (9.9lbs

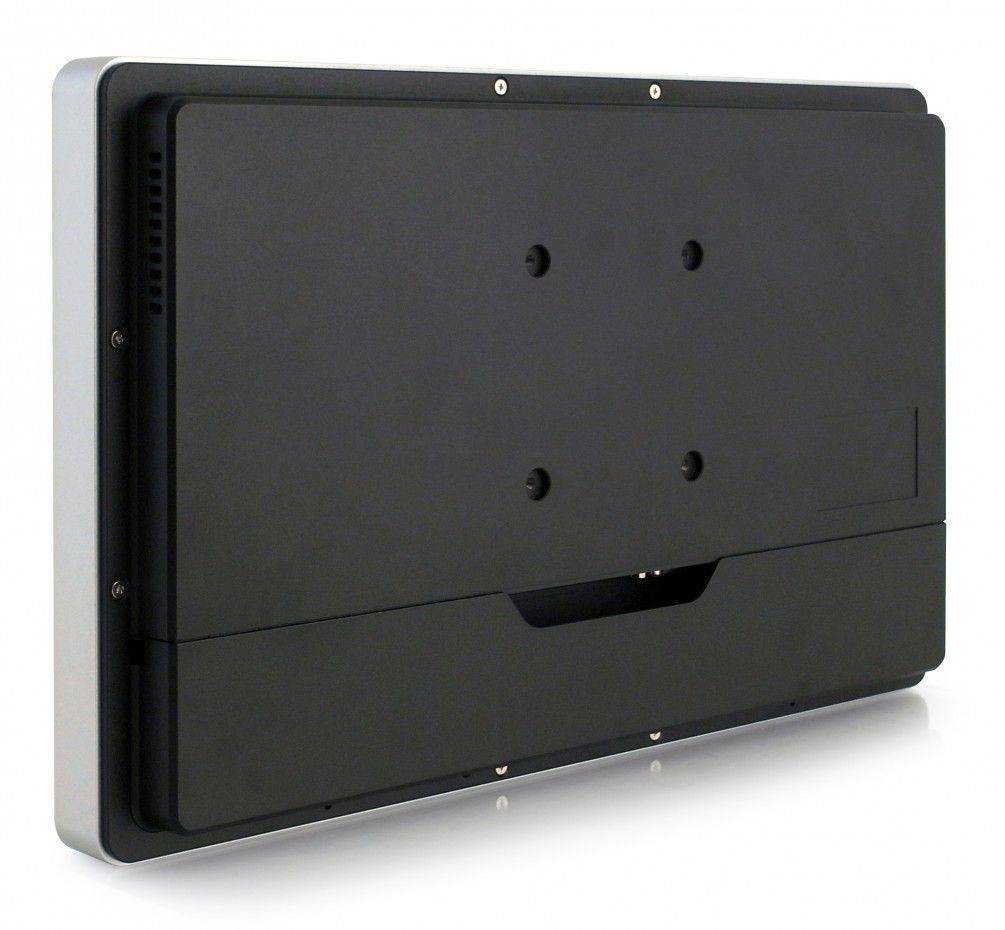

Mounting 75 x 75 mm Standard VESA / Panel Mount
OS Supported Windows XP, POS Ready 2009, XP Embedded, XP professional for Embedded, Linux, Windows 7 (32bit), POSReady 7 (32bit)
