Rugged Panel PC
18.5'PAN-A53(D2550)

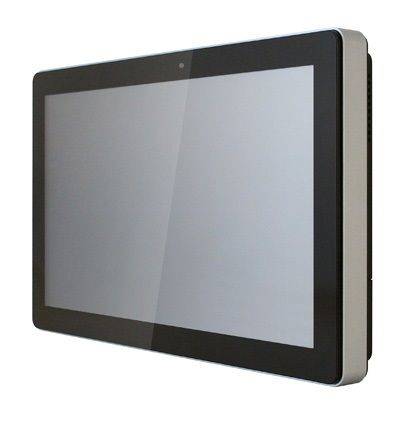

18.5' Fanless Touch Panel PC With Intel D2550 CPU
Features:
- 18.5" LED LCD
- Intel Cedarview D2550 Dual Core 1.86G CPU
- Resolution: 1024 x 600
- True flat resistive touch / True flat projected capacitive touch
- Fanless
| Mainboard | C45 | C86 |
| Processor | Intel Cedarview D2550 Dual Core 1.86G, L2 1M, 10W | Intel Sandy Bridge CPU, LGA 1155-pin, 32nm |
| i5-2390T 2.7G, LLC 6M, 35W | ||
| i3-2120T 2.6G, LLC 3M, 35W | ||
| Pentium G630T 2.3G, LLC 3M, 35W | ||
| Chipset | CPU integrated graphic + NM10, 2W | Intel Q67 PCH, 6.1W (AMT/RAID enabled) |
| Intel H61 PCH, 6.1W (AMT/RAID disabled) | ||
| System Memory | 2 x DDR3 SO- DIMM socket up to 4GB, FSB 1066 MHz | 1 x DDR3 Long-DIMM up to 8GB, 1066/1333MHz |
| Graphic Memory | Intel GMA 3650 (Gfx frequency up to 640MHz), DX9 | Intel HD Graphics 2000/3000, integrated in CPU, frequency 850MHz (dynamic up to 1.1GHz) |
| LCD Touch Panel | ||
| LCD Size | PAN-A53 : 18.5" LED LCD | |
| Brightness | PAN-A53 : 250 cd/m2 | |
| Resolution | PAN-A53 : 1366 x 768 | |
| Touch Screen | PAN-A53 : True flat resistive touch / True flat projected capacitive touch | |
| Storage Device | ||
| Hard Drive | one 2.5" slim SATA HDD bay | |
| Flash Memory | SATA pSSD (Option) | |
| Expansion | ||
| miniPCI-E Slot | 1 | |
| External I/O Ports | ||
| USB 2.0 | 4 x USB Type A | |
| Serial Port | 4 x RJ45 COM ports (COM1/2 standard RS232; COM3/4 powered RS232; COM3 default 5V / COM4 default 12V by BIOS setting) | |
| Parallel Port | N/A | 1 x D-sub 25F |
| GigaLAN (10/100/1000) | 1 (RJ45) | |
| 2nd GigaLAN (10/100/1000) | 1 (RJ45) | |
| 2nd VGA | 1 (DB15 Female) | |
| Cash Drawer | N/A | 1 (RJ11) |
| DC Jack (Power input voltage) | 1 (8V ~ 36V) | 1 (19V) |
| Audio Jack | 1 x Mic-in, 1 x Line-out | |
| E-SATA | 1 (Option) | |
| Thermal solution | ||
| Thermal solution | Fanless | PAN-A53 : 2 x Fan |
| Audio | ||
| Internal Speaker | 2 x 2W speaker | |
| Power | ||
| Power Adapter | PAN-A53 : 65W/19V | 120W/19V |
| Control | ||
| Power Button | 1 | |
| Peripherial (option) | ||
| Web cam (Build in) | 2M web cam | |
| WiFi | 802.11 b/g/n WLAN card | |
| MSR-right side | 3 track (USB) | |
| Device Box | Smart IC card Reader / Scanner / Function Keypad / Line Out / Mic In | |
| Certificate | ||
| EMC & Safety | FCC Class A / CE Mark / LVD / EN 60601-1-2 | |
| Environment | ||
| Operating Temperature | 0°C ~ 35°C (32°F ~ 95°F) | |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) | |
| Humidity | 20% ~ 85% RH non-condensing | |
| Dust & Water Proof | IP65 (front) | |
| Physical Characteristics | ||
| Dimension (W x D x H) | PAN-A53 : 464 x 48 x 284mm (18.3" x 1.9" x 11.2") | |
| Weight | PAN-A53 : 6.8kg (15lbs) | |
| Mounting | 75 x 75 mm Standard VESA / Panel Mount | |
| OS Supported | Windows XP, POS Ready 2009, XP Embedded, XP professional for Embedded, Linux, Windows 7 (32bit), POSReady 7 (32bit) | Windows XP, POS Ready 2009, XP Embedded, XP professional for Embedded, Linux, Windows 7, POSReady 7 |
