32'DSP-A7(D525)

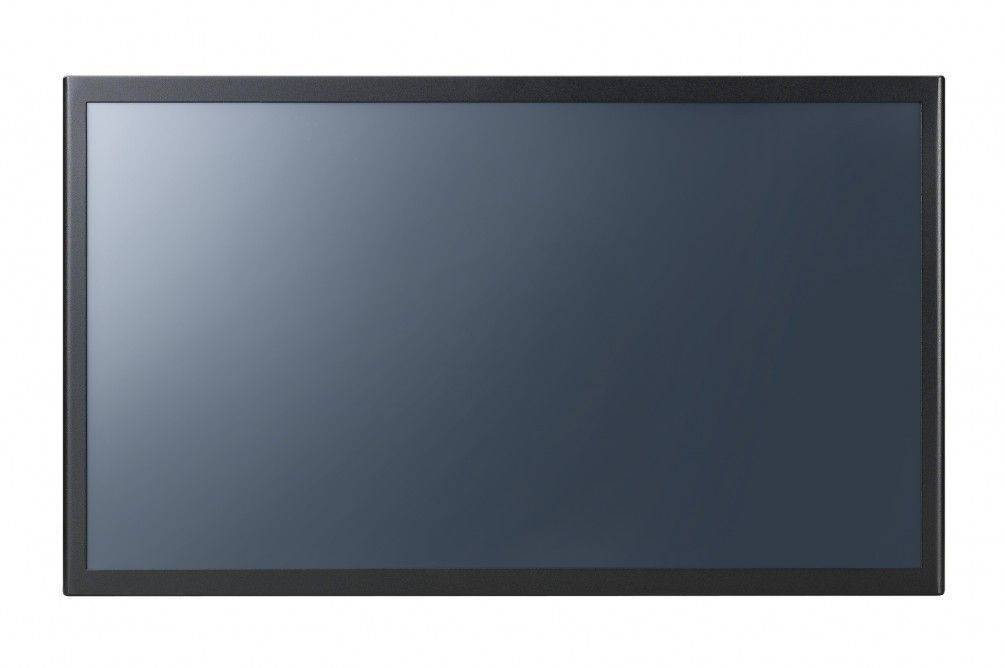

Fanless All-in-One 32" Digital Signage Display Powered by Intel® Atom™ D525 Dual Core Support Full HD Video Playback

PowerDigiS DSP-A7 series is cost effective yet high performance all-in-one digital signage display designed to address a broad spectrum of digital signage applications.

DSP-A7 is an Intel® Atom™ D525 Dual Core based digital signage player with built-in high quality 32" 16:9 LCD display pre-loaded with user-friendly digital signage software, the PowerDigiS, targeting for entry-level digital signage applications. DSP-A7 is a self-contained digital signage display and player device enclosed in a compact chassis with low power consumption. DSP-A7 is capable to layout display into multiple rectangle zones and play rich multi-media contents on each zone in accordance with user defined schedule table. This makes the DSP-A7 work perfect for increasing digital signage applications within retail outlets, department store, entertainment venues, restaurants, hotels, bus/train station, schools/universities and hospitals for dynamic message delivering, advertising, or brand promotion.



Specification
Content Source Local disk or network server
Video File Format MPEG 1/2/4, AVI, WMV, DivX, XVID, VOB, MOV VC-1, H.264, rm, rmvb
Flash File Format SWF, FLV
Picture File Format JPG, BMP, PNG, ICO,ICP, GIF, TIFF, WMF
Sound Format MIDI, MPEG-1-Audio LayerII (MP2), mp3, SND, M4A, AAC, wav, wma, ogg, ra
Web/Data Web URL Text files RSS news feed
Screen Support Single display, or two clone displays Portrait or landscape orientation Presentation can be segmented to different screen layouts Up to 9 display zones in each screen layout
Playing Effect Scrolling text and emergency message Image transition effect Multiple languages
Content Throughput Up to 2 x HD video zone, or 1 x Full HD video zone, or 1x shockwave flash zone Multiple pictures and scrolling text zones
Management Function Web-based management with password access control Multilingual management interface Presentation management Presentation scheduling System event log Presentation playing log Presentation play/ pause/ stop control function System reboot, shutdown, firmware upgrade
Presentation Design Presentation layout and playlist editing function Presentation and content file preview function Presentation publish function
Operating System Ubuntu Linux
Storage Device 160GB SATA HDD
Display TFT LCD panel 32" 16:9 1920 x 1080 resolution Optional touch screen
I/O Interface 1 x DB15 VGA (Clone) 1 x Audio Line-out; 1 x Line-in; 1 x Mic-in 2 x RJ45 with LEDs for 10/100/1000Mbps Ethernet 4 x USB2.0 ports 2 x DB9 for RS-232
Power Supply 1 x External AC/ DC adapter
Input: 100~240VAC
Output: +24VDC
Dimensions 753mm (W) x 442.6mm (D) x 86.1mm (H) (29.6" x 17.4" x 3.4")
Environment Operating temperature: ambient with air flow from 0°C to 40°C Storage temperature: -20°C to 75°C Humidity: 10 to 90% (non-condensing)
Certification CE approval FCC Class A
