Rugged Monitor

(49.5\') SM-49
(49.5\') SM-49
(49.5\') SM-49
(49.5\') SM-49
(49.5\') SM-49

(49.5') SM-49

49.5”Resizing LCD,1200nits LED backlight, 1920x538 ultra wide aspect ratio 16:4.5
Inquiry
SM-49 is an innovative ultra-wide, sunlight readable, LED backlight LCD display. it provides LCD panel with specific ratios for digital signage, public transportation, exhibition hall, department store, vending machine and industrial applications. Incorporating with A.D. control board and backlight design, it is high brightness and sunlight readable panel, can display high-quality video with energy-efficient.

Key Features
  • Resizing LCD
  • Ultra Wide Screen (16 : 4.5)
  • Sunlight Readable
  • LED Backlight
  • High Brightness 1200 nits
  • Low Power Consumption
  • Wide Dimming
  • Life Expectancy (70,000hrs)
  • Slim Bezel

Applications
  • Digital Signage
  • Information

Specification
Description  49.5” Wide TFT LCD, LED Backlight 1200 nits, 1920x538
Active Display Area (mm) 1209.6 x 338.9mm
Brightness  1200cd/m2
Resolution 1920 x 538
Aspect Ratio  16:4.5
Contrast Ratio   9700:1
Pixel Pitch (mm)  0.21(H) x 0.63(V) mm
Viewing Angle  R/L 178(Typ.), U/D 178(Typ.)
Display Colors 16.7M colors
Response Time (Typical)  6.5 ms
Sync  LVDS
Power Consumption  104W

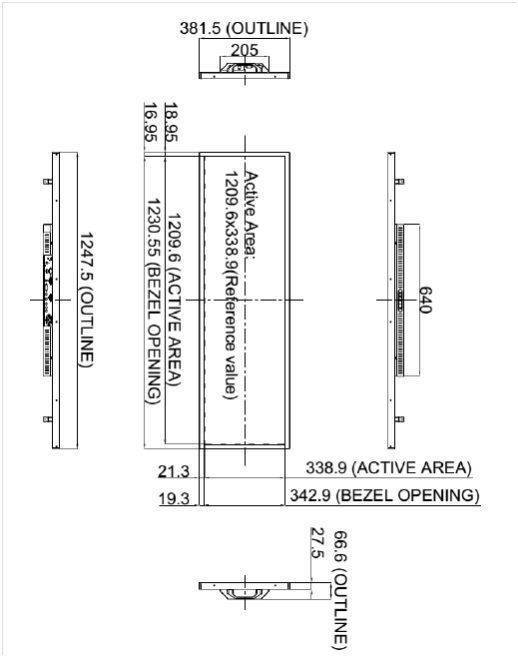

Outline Dimensions (mm)  1247.5 x 381.5 x 66.6
Weight (Net)  18.4kg
LED Driving Board  LID49A
Control Board (Optional)  VGA, DVI, HDMI (Option AV/S-Video/Component/Audio)
F / R Control Button 4 Key 4 Key Power Switch, Menu, Select (+,‐),
OSD Menu  Brightness, Contrast, H/V Position, Color, Phase, Clock…
