2nd Generation Intel® Core™ i3/i5/i7 Processors Embedded Controller
System Specification | |
CPU | 2nd Generation Intel® Core™ i3/i5/i7 Processors |
Intel® QM67/ HM65 | |
Memory | 2x DDR3 1066/1333 SO-DIMM up to 8GB |
BIOS | AMI UEFI BIOS / iAMT 7.0 surpported |
Storage | 2.5" SATA HDD or SSD |
Expansion | 2 x mini PCIe slots (Optional for 3G/WiFi/Bluetooth module) |
1x SIM card slot (for 3G appliance) support user accessible | |
WLAN | IEEE 802.11 b/n/g (optional) |
Power Supply | Input: 100 - 240 VAC |
Output: +19VDC, 3.95A, 75W | |
OS Support | Windows Xp/XPe/Windows 7 |
I/O Connectors | |

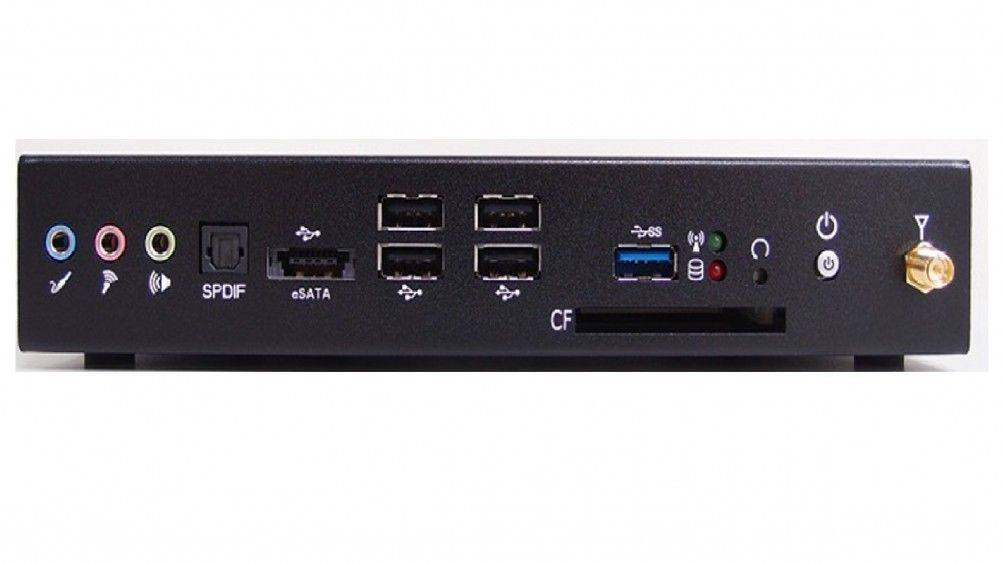

Front Panel | 3.5mm Phone Jack, support 5.1 channel audio output * 3 |
S/PDIF Output * 1 | |
eSATA and USB 2.0 combo connector *1 | |
USB 2.0 * 4 | |
USB 3.0 * 1 | |
CF Slot * 1 | |
Power Button ( with Power LED ) * 1 | |
Storage status LED (HDD/Card reader) * 1 | |
Wifi status LED * 1 | |
3G external antenna * 1 | |
Rear Panel | DC JACK for DC19V single power input * 1 |
DVI-I for DVI-D or VGA output * 1 | |
HDMI *1 | |
DP *1 | |
RJ-45 GbE ports * 2 | |
COM Port support RS-232/422/485 (Offer +5V/+12V selection) *1 | |
Wifi external antenna * 2 | |
Mechanical & Environment | |
Operating | 0°C to 40°C |
Storage | -20°C to 80°C |
Humidity | 0%-90%, non-condensing |
Dimensions | 200 x 35 x 153.1 mm (WxHxD) |
Weight | 1.2 Kg |
Mounting | VESA Mount |
Certifications | CE, FCC Class A |
