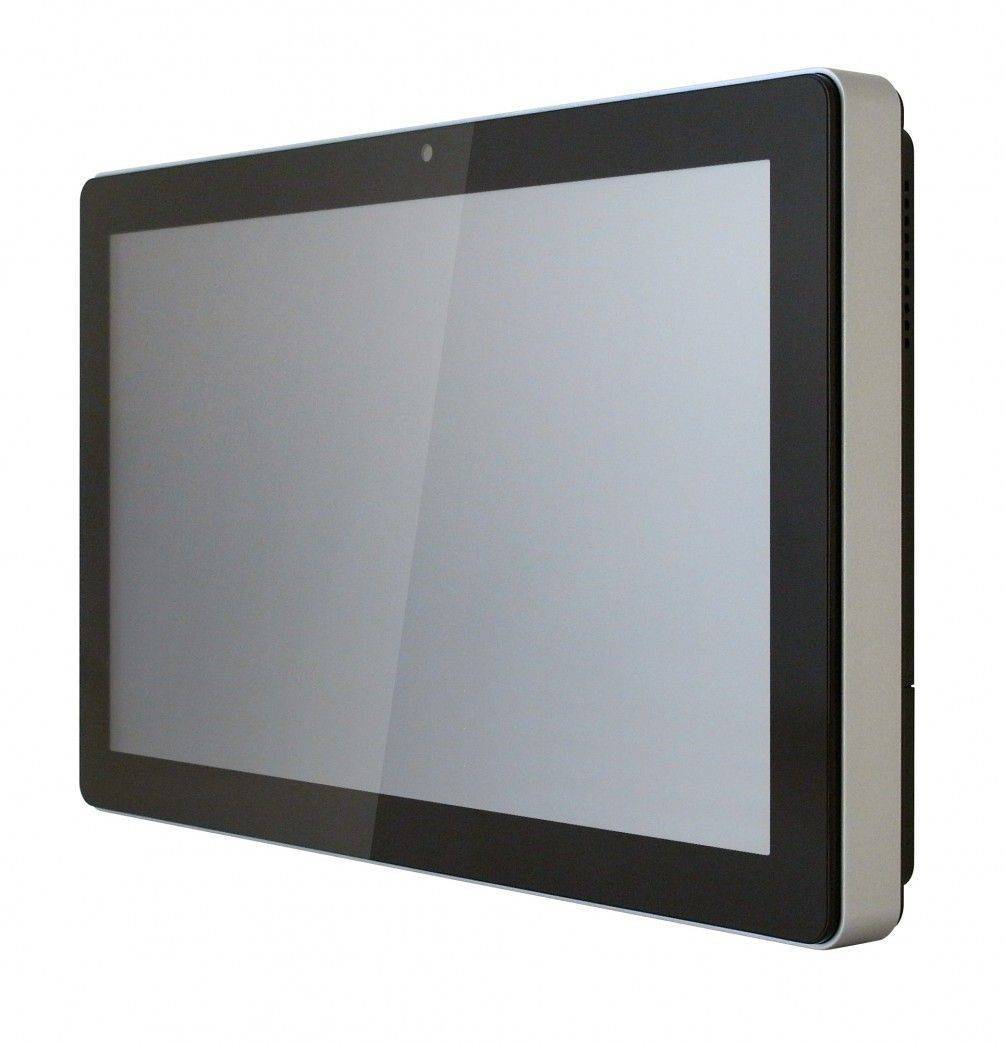

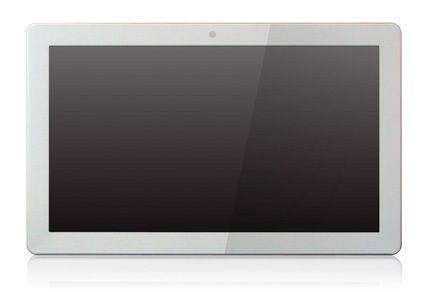

Rugged Panel PC
21.5' K759-001
K759-001: 21.5' Panel PC
Features:
• 21.5" True-Flat PCAP Touch• Intel Bay Trail or Haswell Processor
• Front IP65
• WiFi + BT Available
• Webcam Available
• MSR Available
• Device Box (Smart IC Card Reader, RFID, Scanner,
Line-out, Mic-in) Available
*Fanless is Available for Inter Bay Trail
Specification
| System | |
| Processor | Intel Bay Trail CPU Celeron J1900, Quad Core 2G/2.41G |
| Chipset | CPU Integrated |
| System Memory | DDR3L 1333MHz (max. 8G) |
| Memory Socket | 1x SO-DIMM |
| Graphic Engine | Intel HD Graphic |
| LCD Touch Panel | |
| LCD Size | 21.5" (16:9 ratio) |
| Brightness | 250 nits |
| Resolution | 1920 x 1080 |
| Touch Screen | True-Flat PCAP Touch |
| Storage Device | |
| HDD/ SSD | 1x 2.5" SATA |
| Flash Memory | SATA Slim SSD 8G/ 16G/ 32G/ 64G (Option) |
| Expansion | |
| Mini PCI-E Socket | 1 |
| External I/O Ports | |
| USB | 1x USB3.0, 4x USB2.0 |
| Serial Port | 4x RJ48 (with DB9 convert cable) |
| LAN | 2x RJ45 |
| Audio Jack | 1x Line-out |
| VGA | 1x DB15 |
| DVI | 1x DVI-D (Option) |
| Audio | |
| Internal Speaker | 2x 2W |
| Power | |
| Power Adapter | 90W / 19V |
| Wide Range Power Input | 12-48V |
| Connector | 4-pole DIN (with latch) |
| Peripheral (Option) | |
| WiFi + BT | 802.11 b/g/n WLAN card + BT 4.0 |
| Built-in Webcam | 2MP |
| MSR | 3-Track MSR (USB) |
| Device Box | Smart IC Card Reader, RFID, Scanner, Line-out, Mic-in |
| Certificate | |
| MC & Safety | FCC Class A, CE Mark, LVD |
| Environment | |
| Ventilation | Fanless |
| Dust & Water Proof | Front IP65 |
| Operating Temperature | 0°C ~ 35°C (32°F ~ 95°F) (Still Air) |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Humidity | 20% ~ 85% RH non-condensing |
| Dimension (W*D*H) | 536 x 48 x 328 mm (21.1" x 1.9" x 12.9") |
| Weight | 8 kg (17.6 lbs) |

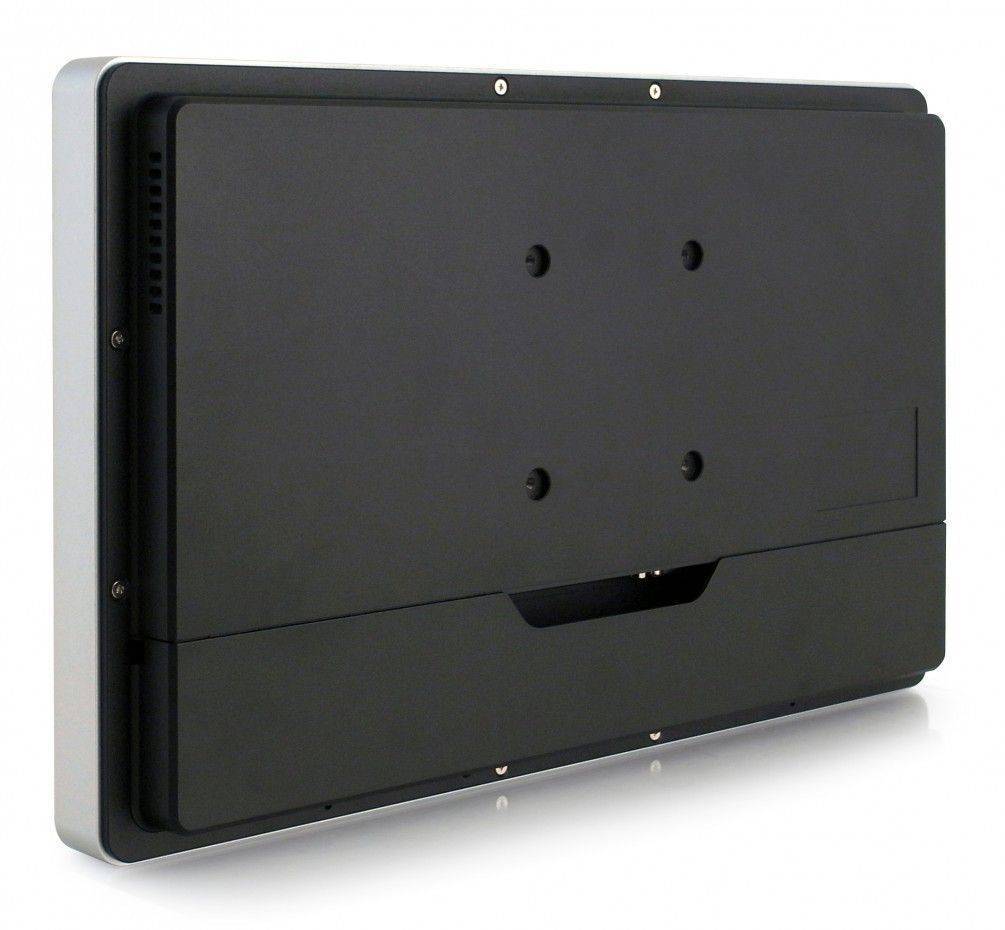

| Mounting | VESA Mount 75 x 75 |
| OS Supported | Windows 7 (32/64bit), Windows 8.1 (32/64bit), Windows 10 (64bit), Linux |
